Algae Light Drop-In Photobioreactor System- Batch Culture

The Algae Light Drop-In PBR System is a patented modular photobioreactor solution designed to optimize microalgae cultivation across a wide range of tank configurations and applications. This system is a drop-in unit, enabling easy integration into existing setups. End users must supply their own tanks, allowing flexibility to use a single large tank or multiple smaller tanks to achieve the desired volume.

Each system includes submersible LED units paired with a single watertight control box. Each 200W Algae Light is designed to illuminate 200L of culture, and models are available with 1 to 5 lights for tank volumes ranging from 200L to 1000L or the equivalent in smaller tanks (e.g., 5x 55-gallon drums for 1000L).

Engineered with submersible LED technology, the system delivers precise control over light intensity and distribution to ensure optimal photosynthetic efficiency. Using principles of internal illumination, the system enhances light penetration and uniformity, ensuring a consistent euphotic zone for productive algae growth, replicating the efficiency of high-performing outdoor algae ponds. Energy-efficient LEDs operate at up to 1W/L power, balancing effective lighting with sustainability to minimize operational costs.

Available Models:  All models include a control box and specified number of lights.

• AL200 (55-gallon): Includes 1 Algae Light unit with a single control box, suitable for a 200L tank or equivalent smaller tanks.
• AL400 (110-gallon): Includes 2 Algae Light units and a single control box, ideal for a 400L tank or two 55-gallon drums.
• AL600 (165-gallon): Includes 3 Algae Light units and a single control box, supporting a 600L tank or three 55-gallon drums.
• AL800 (220-gallon): Includes 4 Algae Light units and a single control box, designed for an 800L tank or four 55-gallon drums.
• AL1000 (IBC tote or 5x 55-gallon drums): Includes 5 Algae Light units and a single control box, suited for a 1000L tank or equivalent multiple smaller tanks.
• Custom Systems: Tailored to meet unique cultivation needs for larger or specialized configurations.

Key Features:

Optimized Internal Illumination:

• Adjustable Light Flux: Equipped with a dimmer to modulate photon flux, providing precise control over light intensity for various culture conditions.
• Euphotic Zone Efficiency: At 0.8 gDW/L, the euphotic zone encompasses approximately 1/4 of the total tank volume, maximizing light penetration and efficiency.
• Uniform Light Penetration: Submersible LED design minimizes shadow zones, ensuring even illumination across all tanks.

Applications:

• Aquaculture: Cultivates algae for feed production for fish, shrimp, and shellfish.
• Research and Education: Supports studies on algae species, photosynthesis, and advanced cultivation methods.
• Sustainability Projects: Aids in nutrient recovery, wastewater treatment, and biofuel production.

Included:

• Algae Light Units: Submersible LED systems, 200W per light.
• Grounding Cable: Ensures safe operation by mitigating electrical risks.

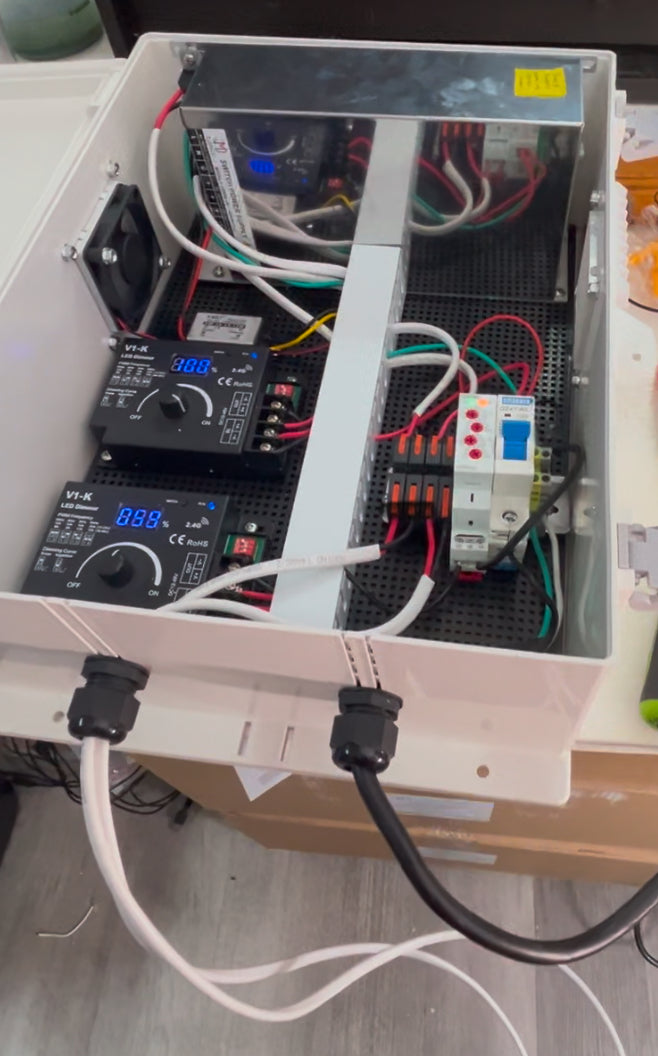

• Watertight Control Box: Protects system controls and connections from environmental exposure.
• Dimmer: Allows precise adjustment of light intensity.
• Timer: Automates light cycles to optimize photosynthesis.
• Breaker: Provides circuit protection for enhanced system safety.
• GFCI (Ground Fault Circuit Interrupter): Reduces electrical hazards in wet environments.
• Mounting Hardware: Includes brackets and fittings for secure installation. Specify your tank type for compatibility.
