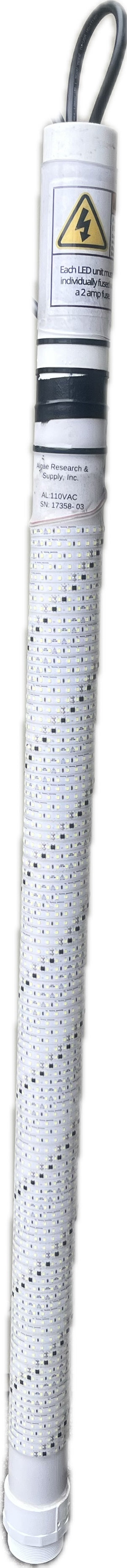

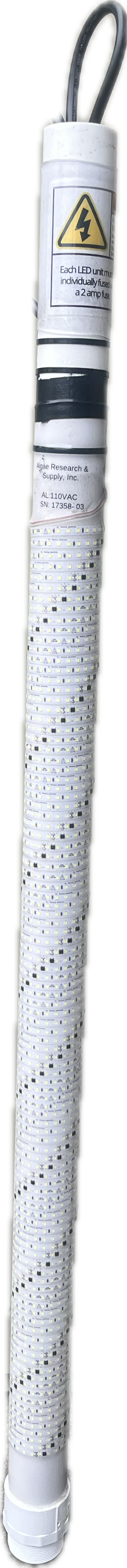

AlgaeLight Drop In Photo-Bio-Reactor
Submersible AlgaeLight Photobioreactor
Drop-In Batch Culture Lighting System

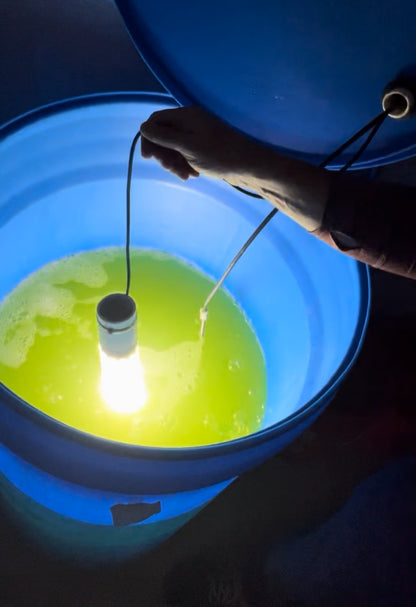

Turn a 55-gallon drum or similar vessel (100–300L) into a functioning batch culture photobioreactor with this simple, durable, and customizable submersible light system. Designed for batch culture applications, this system supplies dimmable light, air, and on/off timing using industrial controllers.
Designed for Batch Cultures:
-
Intended for straightforward batch growth cycles
-
No built-in media dosing or nutrient feedback systems
-
Light and air only; culture is manually harvested and restarted
Specifications:
-
Customizable Light Length: 50–100 cm drop-in light body
-
Airlift Pump Integration: Circulates culture via internal airlift through the center of the light
-
Top/Bottom PVC Ends: Clear, compatible with standard fittings
-
Lighting Specs: 24V DC, ~200W white LED array (custom color spectra available)
-
Adjustable Output: Dimmer included for light intensity control
-
Electrical Enclosure: NEMA-12R minimum
-
**Power Supply: **rated >1.3× LED wattage
-
Air Pump Included: Supports gas exchange and culture mixing
-
Power Cable Management: Routed internally through the PVC housing
-
Grounding Wire: For safe submersion in conductive culture media
-
Input Power: 110VAC with GFI (GFI module can be included in enclosure for an additional fee)
-
Use one light per 100–300L tank
-
For larger tanks like 1000L IBC totes, consider multiple lights
-
Suggested loading: 1W LED per 1L of culture volume
Shipping:
Ships in two boxes—one for the light unit, and one for the control system and air pump.
Each unit is likely a custom assembly and could take 1-3 weeks to ship.
